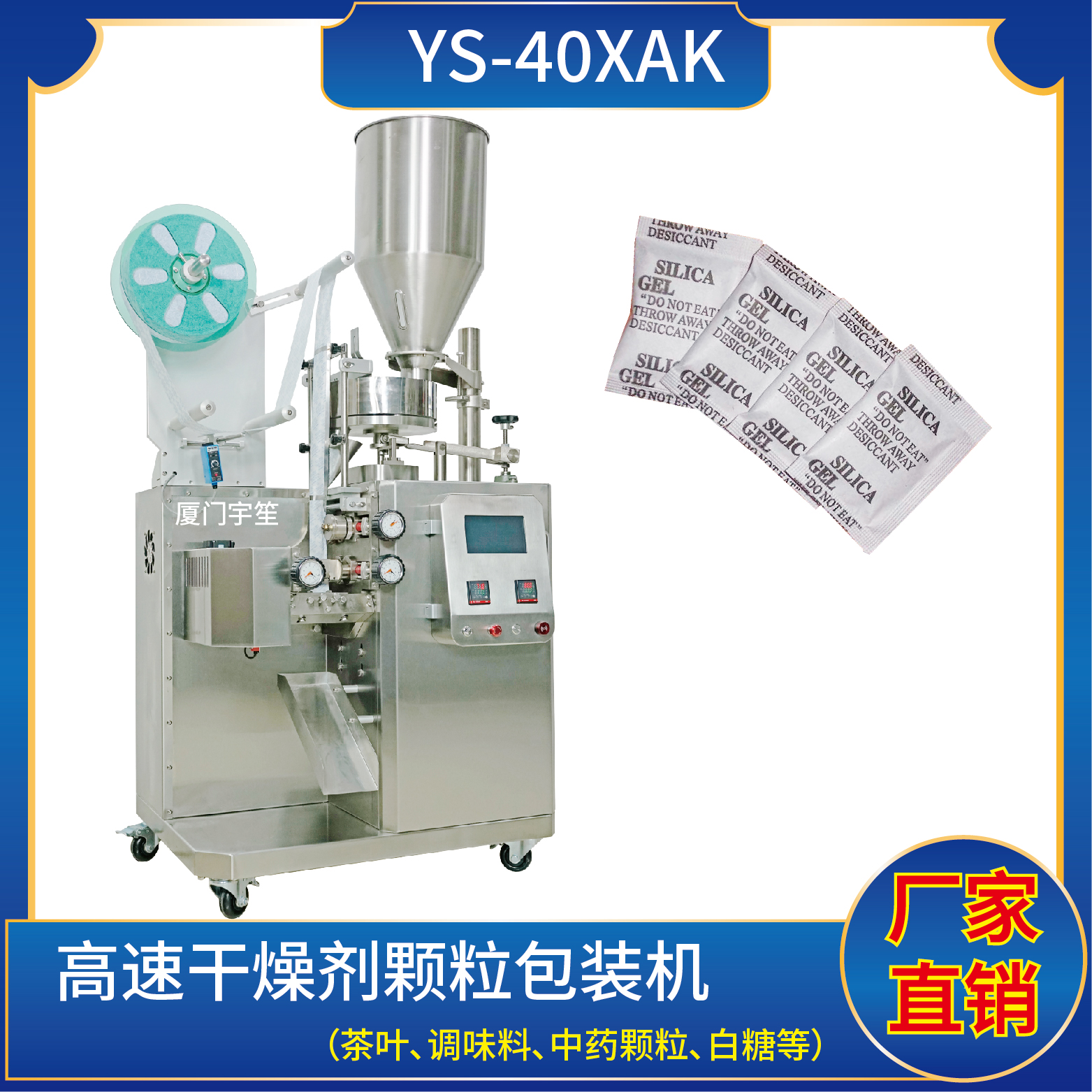

YS-40X 高速小顆粒自動包裝機
YS-40XAK High speed granule packing machine
YS-40XAK 高速顆粒自動包裝機
特 點 Characteristic
1、適用于方便面行業湯包，干燥劑，沖劑，碎茶等小顆粒狀物品包裝。
It is suitable for packing instant noodies industry soup bag,desiccant,tea power,small granular material.
2、可自動完成制袋、計量、充填、封合、分切及計數等功能。
The machine can automatically finish bag making,measuring,filling,sealing,cutting,counting and other function.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，包裝速度快、性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,fast speed,stable performance, easyto adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：茶葉濾紙、復合膜、無紡布。
Packing material：filter paper,composite membrane,non-woven fabrics.

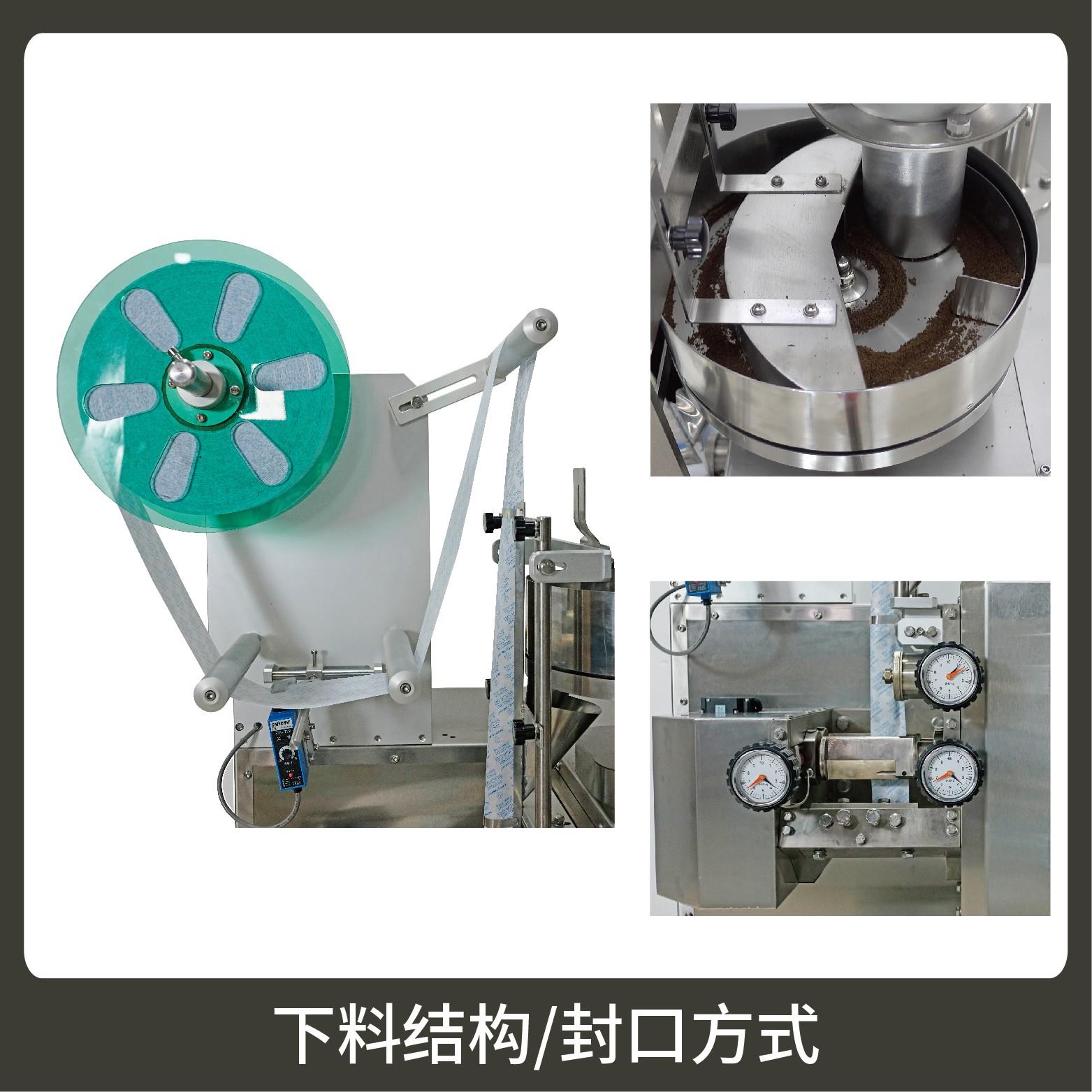

封口方式 Sealing Type
三邊封口Three sides sealing
技術參數
Technical Parameters
計量范圍：10 - 40 g
Measuring Scope
制袋尺寸：長 ( L ) : 30 - 110 mm
Bag Size 寬 ( W ) : 30 - 90 mm
包裝速度：40 - 120 bags / min
Packing Speed
外型尺寸：849 * 646 * 1710 mm
Dimension ( L * W * H )
整機重量：225 kg
Weight
總 功 率：AC220V / 50-60Hz /2kw
Total Power
1、適用于方便面行業湯包，干燥劑，沖劑，碎茶等小顆粒狀物品包裝。
It is suitable for packing instant noodies industry soup bag,desiccant,tea power,small granular material.
2、可自動完成制袋、計量、充填、封合、分切及計數等功能。
The machine can automatically finish bag making,measuring,filling,sealing,cutting,counting and other function.
3、觸摸屏操作，PLC控制，伺服電機控制袋長，包裝速度快、性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差控制在1℃內。
The touch screen operation, PLC contro,servo motor to control the bag length,fast speed,stable performance, easyto adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料：茶葉濾紙、復合膜、無紡布。
Packing material：filter paper,composite membrane,non-woven fabrics.
封口方式 Sealing Type
三邊封口Three sides sealing
計量范圍：10 - 40 g
Measuring Scope
制袋尺寸：長 ( L ) : 30 - 110 mm
Bag Size 寬 ( W ) : 30 - 90 mm
包裝速度：40 - 120 bags / min
Packing Speed
外型尺寸：849 * 646 * 1710 mm
Dimension ( L * W * H )
整機重量：225 kg
Weight
總 功 率：AC220V / 50-60Hz /2kw
Total Power
