YS-62CSB 超聲波無紡布包裝機

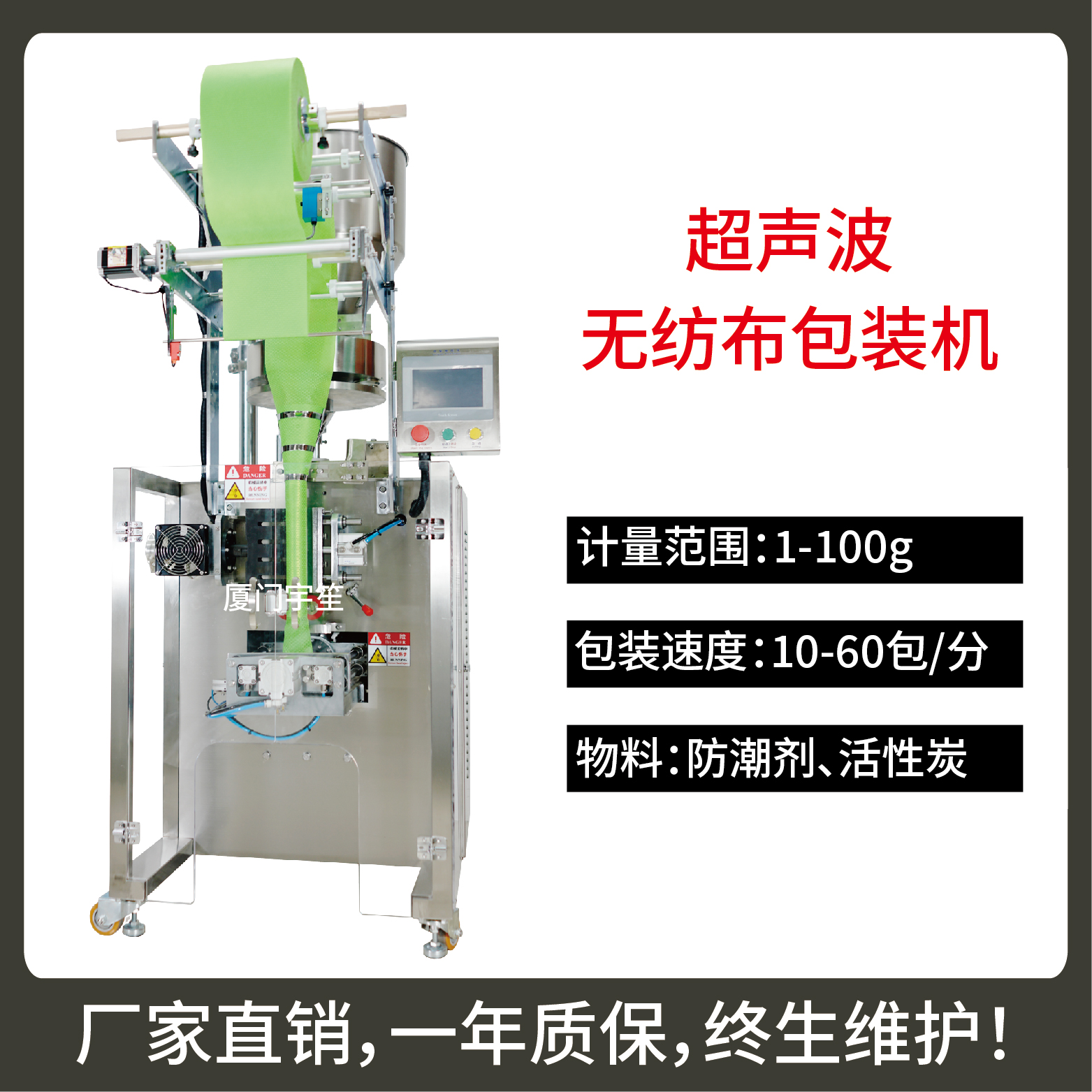

YP-62 Ultrasonic non-woven packing machine
YP-62 超聲波無紡布包裝機
特 點 Characteristic
1、適用于活性炭、干燥劑、鹵料包、足浴包等物品的計量包裝。
Suitable for the metering and packaging of items like activated carbon, desiccants, halogen material sachets, and foot bath sachets.
２、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以內。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：無紡布等。
Packing material：Non-woven and so on.

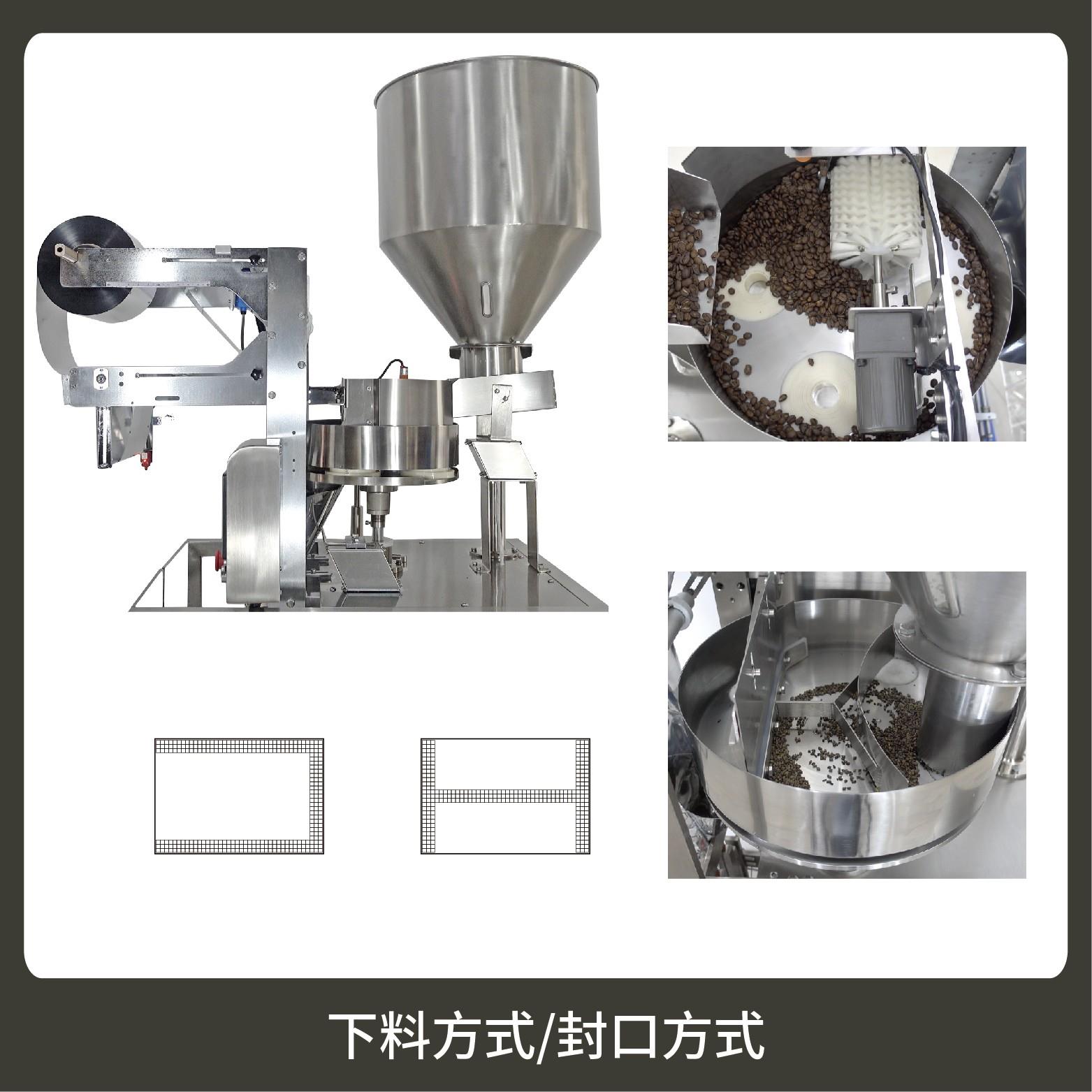

封口方式 Sealing Type
三邊封口 背封封口
Three sides Sealing / Back sealing
技術參數
Technical Parameters
計量范圍：1 - 100 g
Measuring Scope
制袋尺寸：長( L ) : 30 - 170 mm
Bag Size 寬( W ) : 30 - 130 mm
包裝速度：20 - 40 bags/min
Packing Speed
外型尺寸：750 * 1082 * 1967mm
Dimension ( L * W * H )
整機重量：300 kg
Weight
總 功 率：220V / 50-60Hz / 3kw
Total Power
氣源：≥0.6Mpa
Gas source
1、適用于活性炭、干燥劑、鹵料包、足浴包等物品的計量包裝。
Suitable for the metering and packaging of items like activated carbon, desiccants, halogen material sachets, and foot bath sachets.
２、可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以內。
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
４、包裝材料：無紡布等。
Packing material：Non-woven and so on.
計量范圍：1 - 100 g
Measuring Scope
制袋尺寸：長( L ) : 30 - 170 mm
Bag Size 寬( W ) : 30 - 130 mm
包裝速度：20 - 40 bags/min
Packing Speed
外型尺寸：750 * 1082 * 1967mm
Dimension ( L * W * H )
整機重量：300 kg
Weight
總 功 率：220V / 50-60Hz / 3kw
Total Power
氣源：≥0.6Mpa
Gas source
適用于活性炭、干燥劑、鹵料包、足浴包等物品的計量包裝。
Suitable for the metering and packaging of items like activated carbon, desiccants, halogen material sachets, and foot bath sachets.
